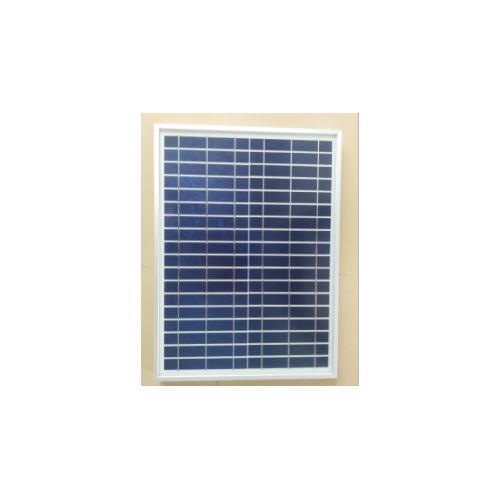

XN-18V20W-P |
|
|
|
|
|
|
|
|
Maximum power (Wp) 额定功率 |
20w |
|
Maximum power voltage (V) 工作电压 |
18v |
|
Maximum power current (A) 工作电流 |
1.11A |
|
Open circuit voltage (V) 开路电压 |
21.06v |
|
Short circuit current (A) 短路电流 |
1.16A |
|
Number of cells (Pcs) 电池片数量 |
36 |
|
Size of module (mm) 电池板尺寸 |
475*350*25mm |
|
|
|
|
|
|
|
Weight per piece (kg) 电池板重量 |
≈1.7kg |
|
Junction Box Type 接线盒 |
PPO, black |
|
|
|
|
|
|
|
|
|
|
|
|
Cell Size(mm)硅片规格 |
156*156 |
|
Cell Efficiency (%) 转换效率 |
≥18% |
|
Frame (Material, Corners, etc.) |
Anodized Aluminum Alloy |
|
Standard Test Conditions测试标准参数 |
AM1.5 100MW/c㎡ 25℃ |
|
Warranty 产品保证 |
5 years for the whole product, for the power, 90% within the first decade, 80% for the next decade. |
|
FF (%) 电池板填充率 |
≥73.3% |
|
|
|
|
|
|
|
供应商参考报价：￥74
